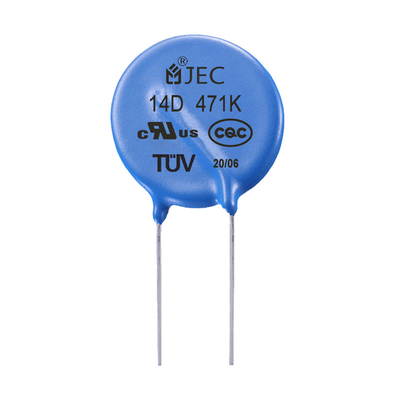

Name: 470V High Voltage Surge Prevention Metal Oxide Film Zinc Oxide Varistor Zov Varistor 14d471k For Semiconductor Devices Protect
Brand: 470V High Voltage Surge Prevention Metal Oxide Film Zinc Oxide Varistor Zov Varistor 14d471k For Semiconductor Devices Protect
SKU: 14D471K
Price: 0.08 USD
Availability: InStock
Rating: 4.8 (139 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Features: Surge prevention

Model Number: 14D471K

Type: Varistor

Application: Power supply, consumer electronics, smart home

Rated Power: 0.6W

Resistance: N/A

Supplier Type: Original manufacturer

Media Available: datasheet, Photo

Tolerance: 10%

Technology: Metal Oxide

Package Type: Blue epoxy

Temperature Coefficient: 0~-0.05%/â„ƒ

Operating Temperature: -40â„ƒ ~ +125â„ƒ

Brand: 14D471K

Power (Watts): 0.6

Coating, Housing Type: Epoxy Coated

Size / Dimension: L=7.5;D=17;H=18

Package / Case: Immersion sealing

Number of Pins: 2

Applications: Power inverter, lighting, new energy

Mounting Type: Though hold

Product name: Zinc Oxide Varistor 470V

Material: Zinc Oxide

Rated Voltage: 14D

Varistor Range(uF): 470V

dielectric material: Epoxy resin

Customize: Yes,provide sample services

Informazioni di base

Model Number: 14D471K

Termini di pagamento e spedizione

Packaging Details: paper bag

Descrizione di prodotto

Product parameters

Technical Data
Model Size				5mm ~ 20mm
Operating /Storage Temperature				-40℃ ~ +85℃(+125℃ VDE)/-40℃ ~ +125℃
Withstanding Surge Current:				100~6500A
Approved Monogram				UL ,VDE ,CSA ,CQC

Series	Maximun Allowable Voltage		Varistor Voltage				Maximun Clamping Voltage
	AC rms(V)	DC(V)	Min.		Vb(Vdc)	Max.	Vc(V)	lp(A)
JNR	7~1000	9~1465	9.6~1620		12~1800	14,4~1980	25~2970	1~100
