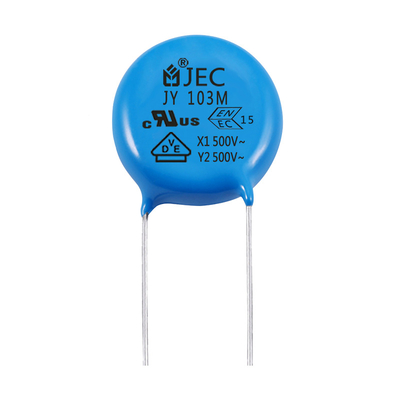

Name: Office Equipment Safety Ceramic Disc Y2 Capacitor AC 500V 103M Safety Ceramic Capacitors For Cross Connecting
Brand: Office Equipment Safety Ceramic Disc Y2 Capacitor AC 500V 103M Safety Ceramic Capacitors For Cross Connecting
SKU: Y5V-Y2-103M/500V
Rating: 4.7 (108 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: Y5V-Y2-103M/500V

Type: CERAMIC CAPACITOR, Y5V-Y2-103M/500V

D/C: JY103M2HY5VS7.5L

Supplier Type: Original manufacturer

Capacitance: 10000PF, 10pF ~ 10000pF

Media Available: datasheet, Photo

Tolerance: Â±20%

Package Type: Through Hole

Operating Temperature: -40â„ƒ ~+85â„ƒ ; -40â„ƒ ~+125â„ƒ

Brand: Y5V-Y2-103M/500V

Specification: Y5V-Y2-103M/500V

Voltage - Rated: 500V AC

Applications: office equipment,electronic equipment,bypass

Application: office equipment,electronic equipment,bypass, office equipment,electronic equipment,bypass

Material: ceramic

Rated Voltage: 500VAC

Size: 13.5*14.5*4.0

Lead Spacing: 7.5

Capacitance Range(uF): 10pF ~ 10000pF

Temp Range (â„ƒ): -40â„ƒ ~+85â„ƒ ; -40â„ƒ ~+125â„ƒ

Customize: Yes,provide sample services

Informazioni di base

Model Number: Y5V-Y2-103M/500V

Termini di pagamento e spedizione

Packaging Details: 20 pieces, boxes

Supply Ability: 1000000 Piece/Pieces per Month

Descrizione di prodotto

Product parameters

Specification Reference Standard	IEC 60384-14 ; EN 60384-14 ; IEC UL60384 ; K 60384
Approved Monogram	VDE / ENEC / IEC / UL / CSA / KC / CQC
Subclass ; Rated Voltage(UR)	X1 / Y1/Y2 ; 400VAC / 300VAC/500VAC
Capacitance Range	10pF to 10000pF
Voltage Proof	4000VAC for 1min/2000VAC for 1min/1800VAC for 1min
Capacitance Tolerance	Y5P±10%(K) ; Y5U,Y5V±20%(M) measured at 25℃,1Vrms,1KHz
Dissipation Factor (tgδ)	Y5P,Y5U tgδ≤2.5% ; Y5V tgδ≤5% measured at 25℃,1Vrms,1KHz
Insulation Resistance(IR)	IR≥10000MΩ,1min,100VDC
Operating Temperature	-40℃ to +85℃ ; -40℃ to +125℃
Temperature Characteristic	Y5P,Y5U,Y5V
Flame Retardant Epoxy	UL94-V0

Application scenario

Production process

Certifications

About us

Exhibition

Buyers praise

FAQ

Q: How about your after-sale service?
1. 365 day warranty
2. If the customer has any questions, we will provide technicalsupport timely.

Q: What are the advantages of your products?
1. We have all models of material, save you time looking fort And recommend materials for you if you need.
2. With the same quality products, we can give you best priceInquiries to after-sale, we will provide good service, such asupdate product status, technical support etc (24 hour online)
3. We have many stocks, and the delivery time usually is short.

Q: What is your MOQ?
A: No MOQ. we accept small orders. Because we believe thatsmall orders may become big orders in the future.

Q: If I place an order, how long will it take to deliver?
A: It usually takes about only 7-14 days after receiving thepayment, depends on the quantity ordered and the stock status.
